***Help*** 2011 Nautique 230 Piggy back ballast install

[kartraceing83]

ordered the 740lb bags for the rear, and the 750lb sac for the front all fro mwakemakers, having trouble installing rear tanks, I believe I am missing some parts but not sure what. WakeMAKERS sent me hoses with 2 “T” and 2 quick connect ends 1 on each end for the rear tanks and 2 quick end for the front tanks but no ends to screw into the bags or instructions on how to connect all the hoses if they need to be cut to fit or what. Looks like the pre built set up has 2 seperate 1 way valves built in but again not sure what to connect to where. Does anyone have any insight into this? Or a Diagram they would like to share?

[Evening Shade]

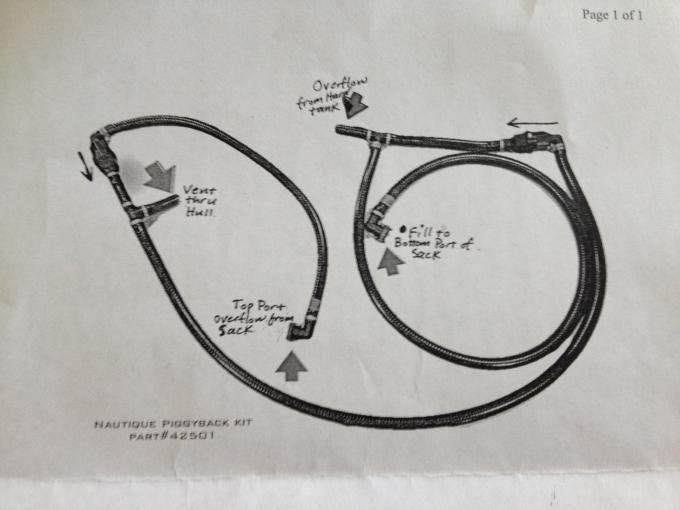

Hopefully this will help.

[kartraceing83]

That’s perfect thank you!

[charlesml3]

Hopefully this will help.

Wow. I'm sometimes amazed at the helpful people on this forum!
