Boat cranks but then shuts off. We think it is fuel pump issue but cannot locate where t is. Manual does not have diagram
-
-

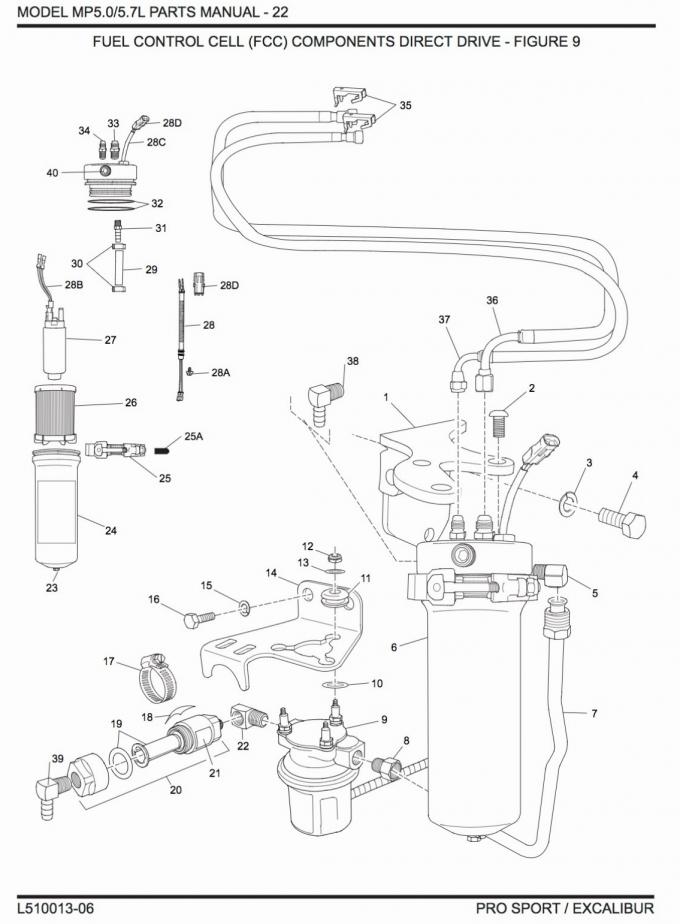

High pressure fuel pump is in your Fuel Control Cell. Part #27 on this diagram.
Low pressure fuel pump is part #9.
I own and operate Silver Cove Marine, which is an inboard boat restoration, service, and sales facility located in Mooresville, North Carolina. We specializes in Nautiques and Correct Crafts, and also provide general service for Nautiques fifteen years old and older.
If we can be of service to you, please contact us anytime!
