Faria Gateway Gauges Running Out for Replacements

[Stevemo14]

I was helping another member track down some new gauges yesterday, and I thought I would toss it out there that it looks like they are running out. If you have a few bad gauges you may want to jump now on a new set while they still have them. You have to use 2 vendors to even get them all.

Tach - https://www.mniboats.com/TACHOMETER-...MS-p/90024.htm
Speedo - https://www.nautiqueparts.com/produc...eter-5-50-mph/

Temp - https://www.nautiqueparts.com/produc...team-editions/
Volt - https://www.nautiqueparts.com/produc...ed-team-boats/
Oil - https://www.nautiqueparts.com/produc...from-2009-now/
Fuel - https://www.mniboats.com/FUEL-GAUGE-...28-p/90028.htm

[functionoverfashion]

Does this have anything to do with the full replacement kit that is currently on backorder from Nautique?

[Stevemo14]

No, this is just replacements for the factory Faria Gateway Gauges. They will not work unless you have a working gateway box. The Full replacement kit switches the gauges to mechanical, so the digital ones that you have won't work.

AS we all know, Gateway Boxes are impossible to find, and no one fixes them, so the full replacement kits take the Gateway out of the equation.

[shag]

the replacement kit is far from a match to any of the interiors of these boats... Sadly.

[Stevemo14]

Lets not sugar coat it, they look like S-H-I-T!

If my Gateway goes out, I do not know what I will do. I don't think I can live that replacement kit

[NautiqueJeff]

The important part of the replacement kit is the wiring harness. Once you have that in place, you can install any gauges you want. I wish you could buy JUST the wiring harness!

[SilentSeven]

The important part of the replacement kit is the wiring harness. Once you have that in place, you can install any gauges you want. I wish you could buy JUST the wiring harness!

Maybe the community should twist Faria's arm on doing just that. Or, we buy a kit and clone the harness. From what I've seen, it's not like Faria has bent over to help boat owners here.

[shag]

Maybe the community should twist Faria's arm on doing just that. Or, we buy a kit and clone the harnesst. From what I've seen, it's not like Faria has bent over to help boat owners here.

From what I was told by a Faria manager was that they were not allowed to work on any Nautique Faria systems. Whether that is true or not, I offered to pay and they still said they were not allowed. Odd

[Ski_Keuka]

For anyone that picked up a spare Faria fuel gauge and are interested in selling it could you PM me? Very interested buyer!

[ScrewPusher]

Just sent you a PM

[tmorefi]

Well, I'm finally in the situation. My gauges went out a few years ago but luckily my perfect pass was still working so at least I had speed. Now looking at redoing them all and can't find the kits anywhere. Are there are options left? I have a 2003 SAN LE.

[SG]

I just installed analog gauges in my 2005 SV211 Team. I had water in my Gateway box. I used the TRD kit. It included all 6 gauges and a wiring harness. Their harness plugs into the 12 pin plug behind the panel except for the perfect pass and backlighting and ground for the Clarion stereo dash remote, you have to splice those wires to the appropriate wires on the new harness ( I’m not sure why they don’t include those plugs) The kit costs $1295. and ships FedEx pretty quickly. https://skiboatpartsonline.com/Inboa...ft-TRD-2001-CC
They also have a Faria conversion kit for $100 more but you have to screw each wire onto the posts on the back of the gauges (a real PITA!). The only thing I don’t like about the TRD gauges is they use 200 rpm and 2 mph increments… not a big deal since Perfect Pass shows tenths.

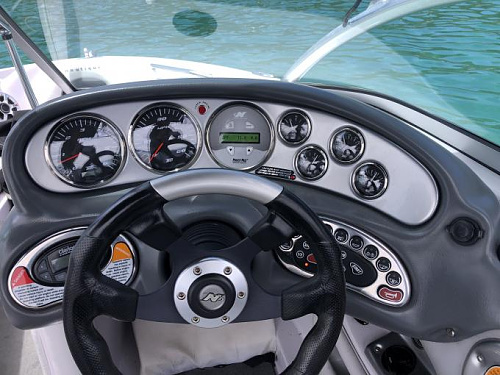

You will lose your water temp/air temp., depth and ECM data and your hour meter will start at zero on the tach. I am considering getting 2” depth gauge and hopefully using the through hull sensor that is already in the boat; I’m not sure if I want to drill through the panel though. Here’s what the black TRD gauges look like:

[Gavery18]

My gas gauge just went on my 2007 236. If anyone has a replacement or knows of any dealers who do, please PM me.

[mitboom06]

If anyone is looking for a new Gateway Box, I have one. I don't have the one with the pitot tube pickup but do have the gateway box that takes the paddle wheel for speed. Have model 0019 and 0021. Both are NOS.

[greghotch]

My fuel gauge (2007 Air Nautique Team Edition) just went out & my local Nautique dealer says the only solution (due to part outages) is to replace the entire gauge cluster. That with “Perfect Pass” and labor = $3400! I’ve been searching for just a fuel gauge and both Nautiqueparts.com & mniboats.com are out of the 07-08 part 70021 & the 2009+ part 90028 (which I hope will work but not sure). From the above thread, I see some may have scooped up some gauges. Please PM me if you have a relevant fuel gauge or know how to get one. Thanks!
