Little wiring help please

[tommyb]

It's a 2002 Gt40 in a Super Air 210

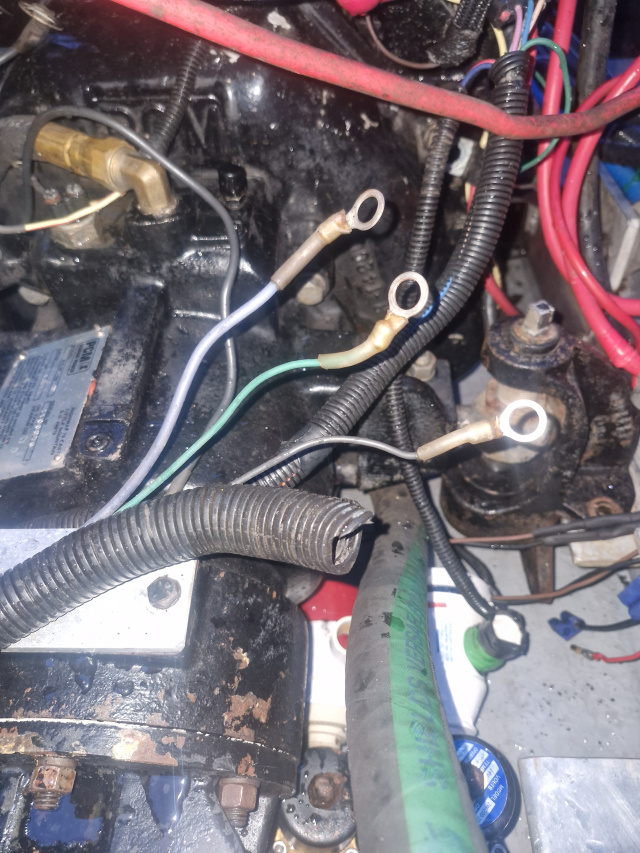

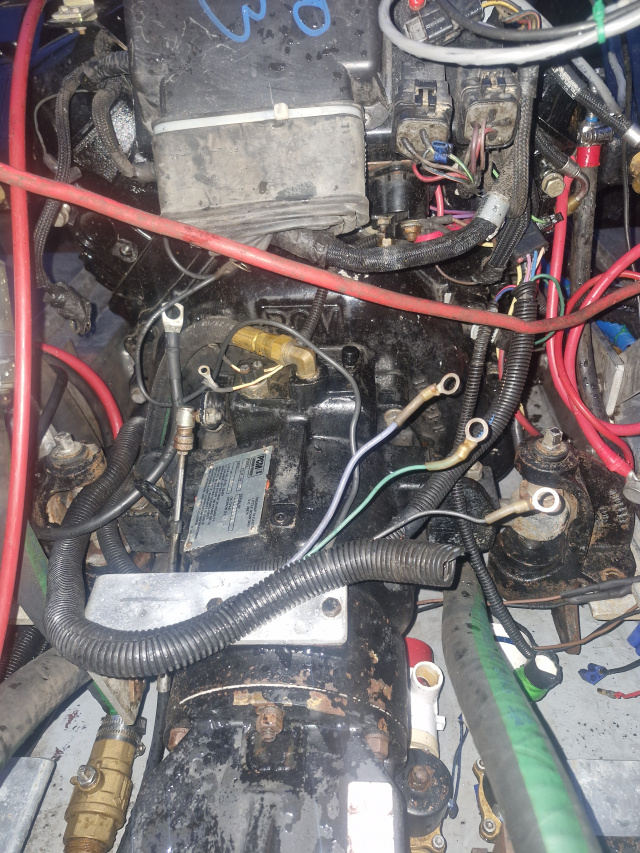

Got these 3 large ringed heavy wires in a conduit left to find a home
after a long build from boxes.
Can anyone tell me where they go?
purple maybe blue, Green and black
Cant find them in any diagram
But my eyes are getting sore for looking
Hope ya can

[NautiqueJeff]

Year and model of boat and engine?

[tommyb]

Sorry
It's a 2002 Gt40 in a Super Air 210

[SilentSeven]

Does everything operate as expected?

[tommyb]

Im not sure yet. This is a full engine rebuild and I'm butting up the last
parts of the loom and pipe work. Its all been done from pictures as the mechanic at the marina stripped it
so i dont know where these go. They seem happy togetther asmthough they were boltednto something
Jusr seems strange light blue green and black.

[SilentSeven]

Got it. I'm assuming you've looked at the wiring diagrams available on the board but had no luck.

If it was my boat, I'd try to follow the wires forward and what they might lead to. If you can figure that out, then you might have a better clue on where they live in the schematic.



Sent from my Pixel 7 using Tapatalk

[bturner]

This would be a wild guess that I would absolutely research more but based on the size of the wires and terminal rings it looks like it could be alternator wiring. I personally would use a tone tester to trace the wires to see where they go. Found this picture on Nautique parts showing 3 post connections on the alternator.....
