    FCT3 Modification to Lower with Z5 Attached - Robline/Cable Replacement

    So I have a 2009 SANTE 210 w/FCT3 and Z5 rack. As you may know, you can't lower the tower with the Z5 on. I live under a bridge, so I have to lower the tower to get under it, although I don't have to lower it ALL the way. For the last year I have just had the Z5 off the boat. This year, I decided to modify the tower to get it to be able to lower the distance I need without removing the Z5. Here is what I did.

    first a good reference on how the robline assembly works - you can review the Roswell replacement instructions here:
    https://roswellmarine.zendesk.com/hc...-Instructions-

    Unfortunately, Mine did not look like that. So I have included more details here. It appears that the newer robline assemblies ($60 per side) allow some spring tension adjustment, and some height adjustment - I needed a specific height, so it was easier for me to simply make my own.

    Also - don't mind my disaster of a garage... its been a long week.

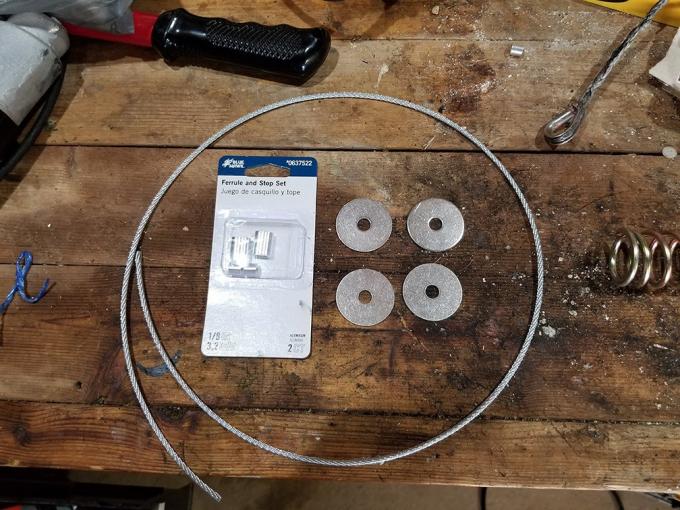

    First - materials needed. This is a cheap "fix"
    6 feet of 1/8" cable. This is ~35 cents a foot and is good to 340 lbs
    8 stainless fender washers - 5/16in x 1 1/2". These are 46 cents each.
    2, 1/8" Aluminum Ferrule set. This is about 2 bucks.

    Click image for larger version  Name:	20190707_190035.jpg Views:	0 Size:	73.7 KB ID:	587813



    Now we have to remove the current rob lines. Mine were pretty stretched out, so they were not in any tension when the tower was up.

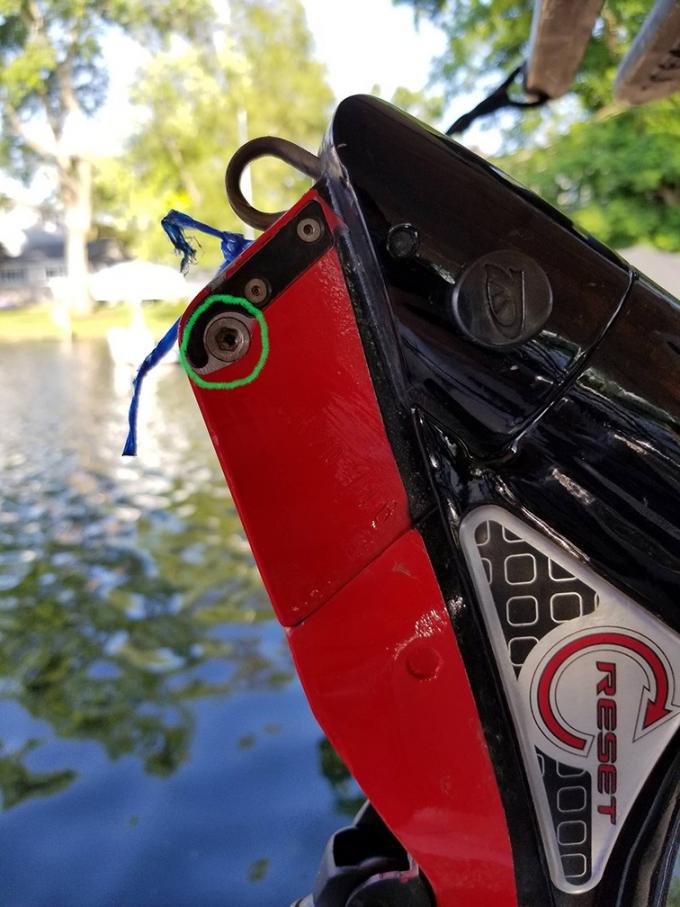

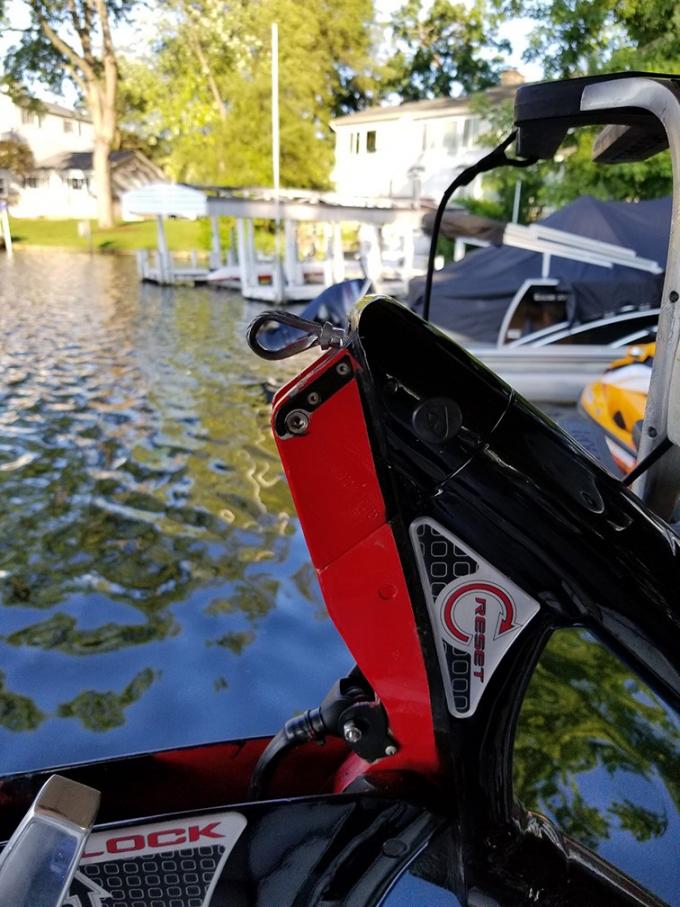

    I removed the bolts holding the robline in place with the tower up. Remove this bolt:
    Click image for larger version  Name:	20190707_184537.jpg Views:	0 Size:	72.8 KB ID:	587791

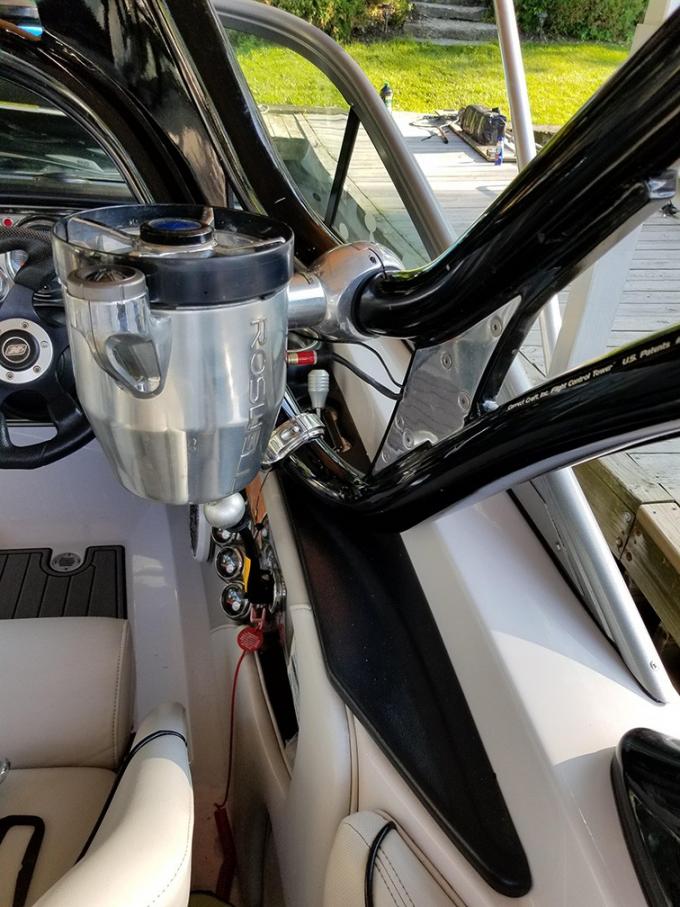

    If you do both sides at once, the tower will not be supported when you lower it. It will be very heavy, and it will rotate quite far - lower it slowly, until it comes to rest like this:
    Click image for larger version  Name:	20190707_184734.jpg Views:	0 Size:	97.1 KB ID:	587814

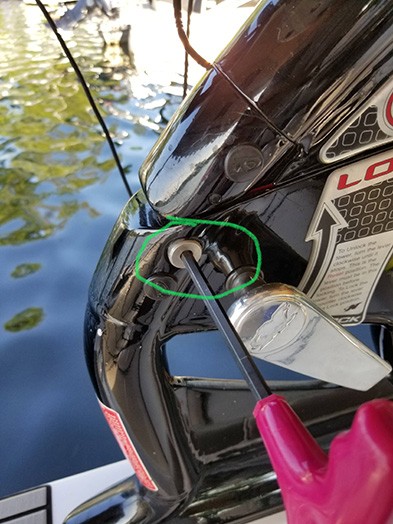

    Now remove the bolt that is used to lock the tower up:
    Click image for larger version  Name:	20190707_184831.jpg Views:	0 Size:	78.2 KB ID:	587800

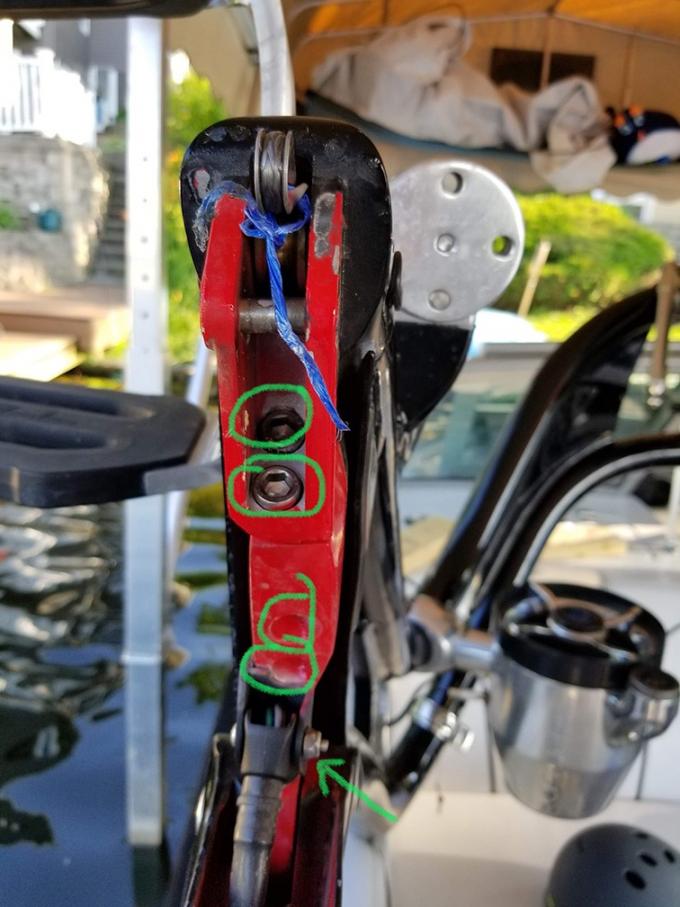

    Now you have to remove the 4 bolts circled here. To get the ones on the bottom, you have to unscrew the bolt/nut that is supporting the wires that go through the tower (arrow in picture below)
    Click image for larger version  Name:	20190707_184837.jpg Views:	0 Size:	76.7 KB ID:	587795

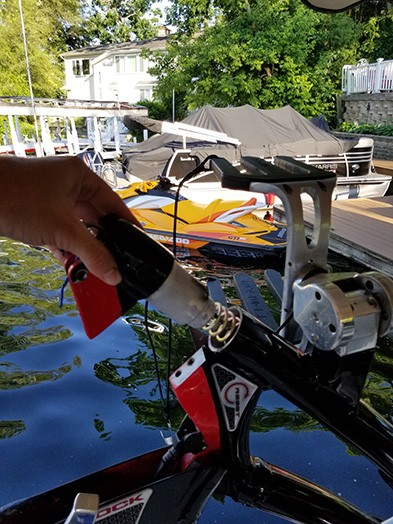

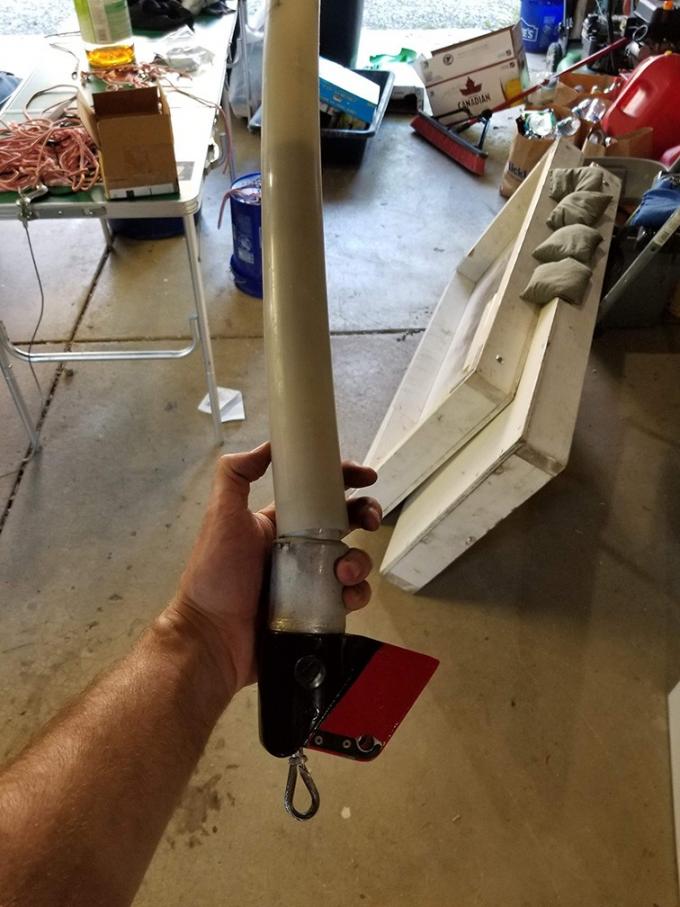

    Once you remove these bolts, you can pull the whole rob line assembly out of the tower like this. Just pull back on the knuckle.
    Click image for larger version  Name:	20190707_185655.jpg Views:	0 Size:	89.3 KB ID:	587789

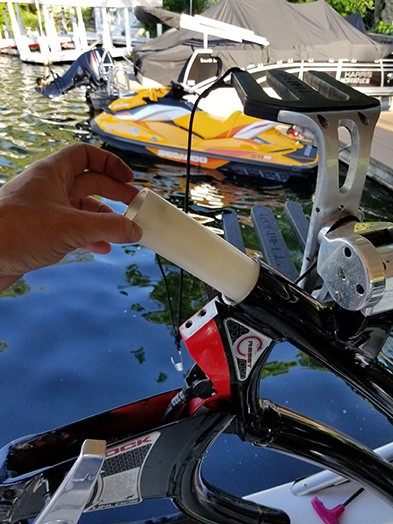

    There is a plastic insert in the tower as well that the spring slides into - remove it as well.
    Click image for larger version  Name:	20190707_185710.jpg Views:	0 Size:	78.9 KB ID:	587790

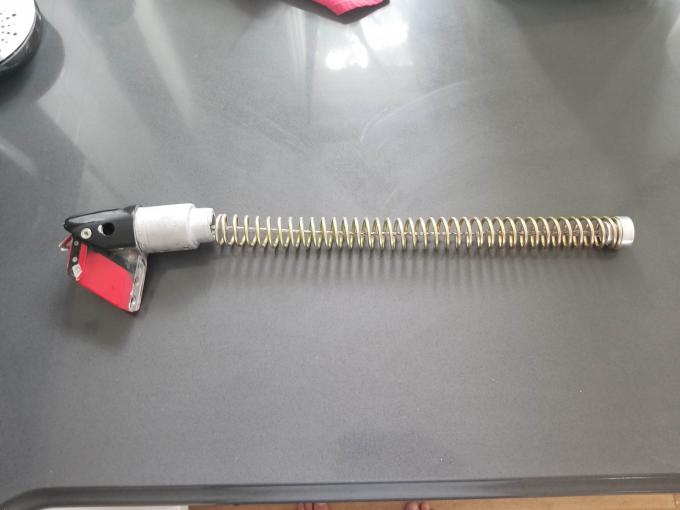

    Now the whole assembly should look like this:
    Click image for larger version  Name:	20190706_173530 (1).jpg Views:	0 Size:	28.4 KB ID:	587811

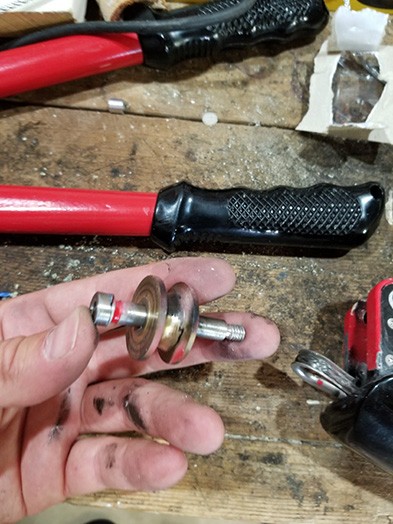

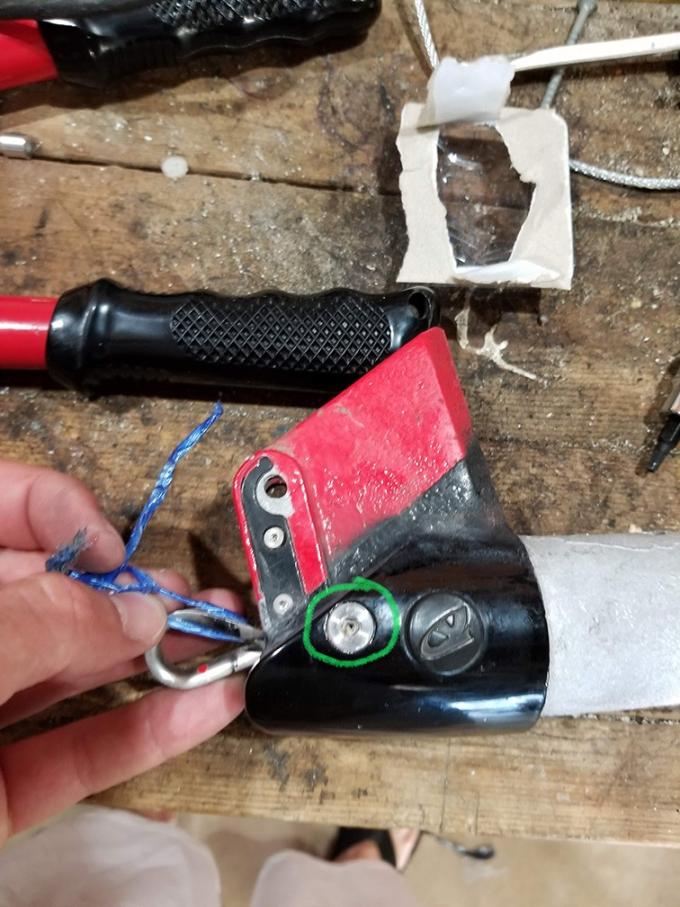

    There is a bolt that holds the roller wheel of this assembly, and thus the whole assembly together. If your spring is in tension, you will want to get a second hand before removing this. Mine was not under tension, so I could simply unscrew it, and remove the roller wheel.
    Click image for larger version  Name:	20190707_185832.jpg Views:	0 Size:	92.2 KB ID:	587798 Click image for larger version  Name:	20190707_185924.jpg Views:	0 Size:	70.4 KB ID:	587792

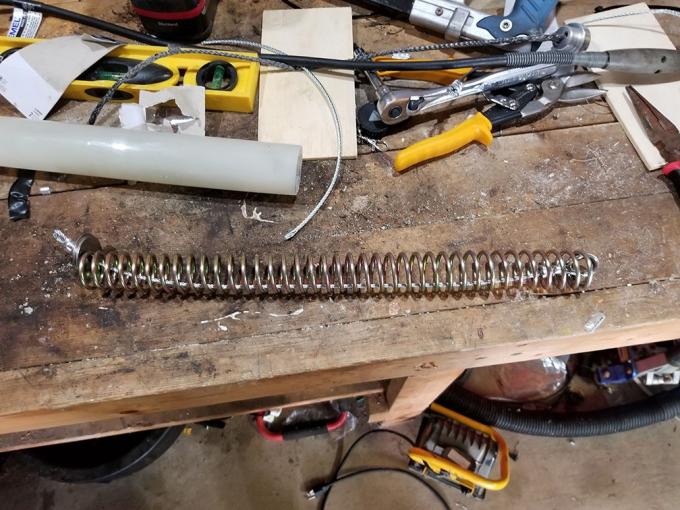

    When you take this wheel out, you can remove the robline from the spring - this is what you are left with:
    Click image for larger version  Name:	20190707_185947.jpg Views:	0 Size:	79.9 KB ID:	587799

    Now - we are going to create a new robline - out of the 1/8" cable

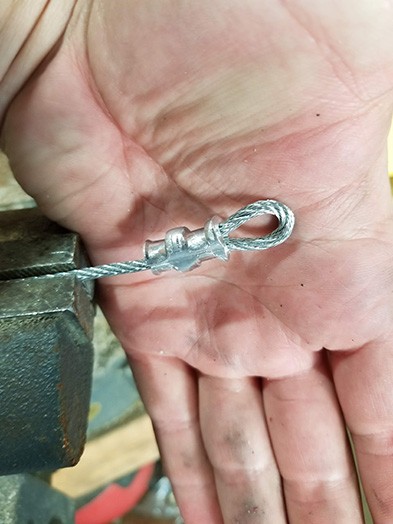

    First, fold over and crimp one end of the cable like this:
    Click image for larger version  Name:	20190707_190236.jpg Views:	0 Size:	49.7 KB ID:	587794

    I then slid on the 4 washers on to the cable.

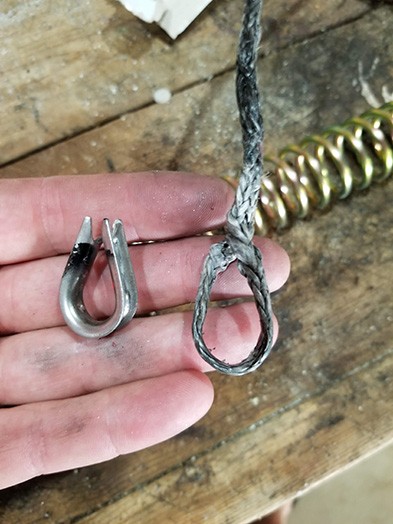

    I removed the metal eyelet from the original robline

    Click image for larger version  Name:	20190707_190326.jpg Views:	0 Size:	59.7 KB ID:	587793

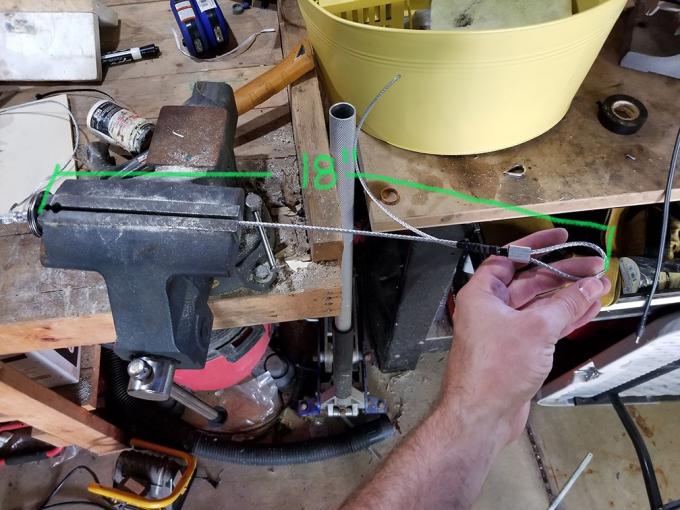

    I then made a loop at the other end of the cable. The length of the cable is 18" from the bottom of the washers, to the end of the loop.

    EDIT - I ended up remaking the cables to 19" - see following post

    You can see I used some tape to hold the cable at the right length, so I could push the ferrule down the cable before crimping it.
    Click image for larger version  Name:	20190707_190537.jpg Views:	0 Size:	63.3 KB ID:	587796

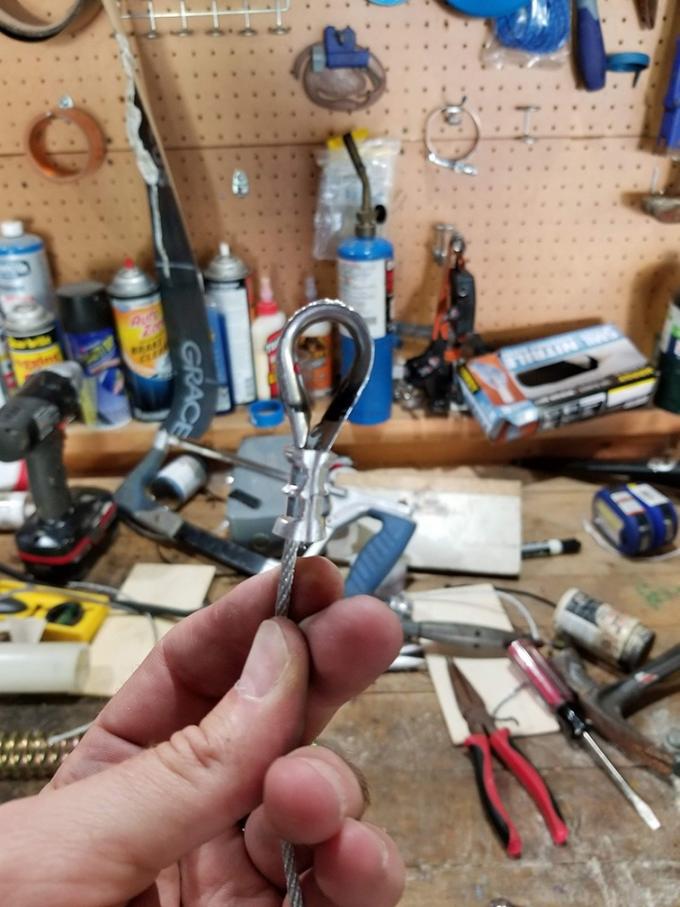

    Next, just crimp the ferrule
    Click image for larger version  Name:	20190707_190958.jpg Views:	0 Size:	79.4 KB ID:	587802

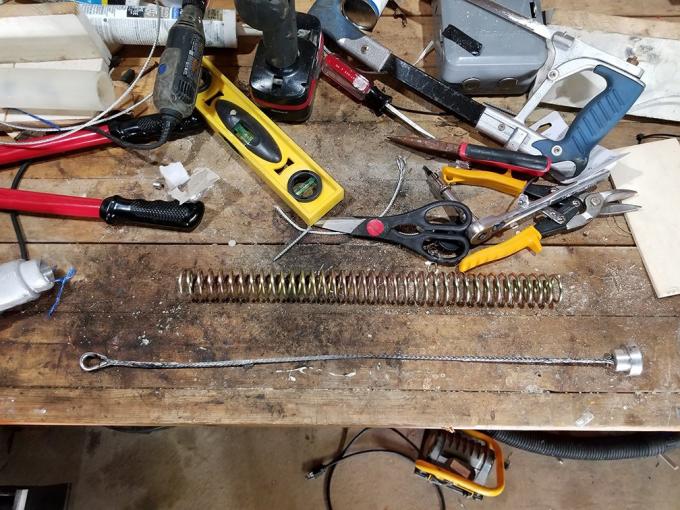

    Now, slide the new cable into the spring like so:
    Click image for larger version  Name:	20190707_191015.jpg Views:	0 Size:	71.7 KB ID:	587805

    For the next part, you will either need 2 people, or some method to compress the spring while you re-insert the roller wheel. I used a winch off my quad and my table vice. If you read the instructions from Roswell, the suggest using a rope to help pull the cable through. I will attach some pictures, but the PDF really does a better job of explaining this step.

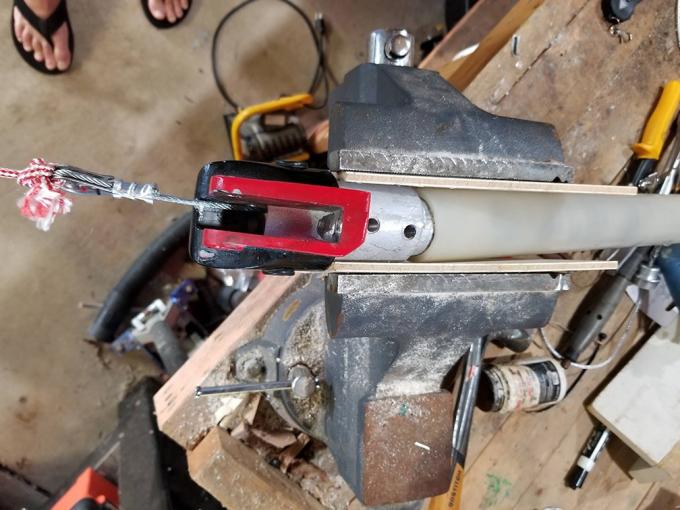

    In the photo below, the new cable is through the spring on the left. A rope is tied to the end of the cable, and is run through the knuckle. The sleeve is over the spring so that when the spring is compressed, it stays inline. You can see the right end of the rope is tied to ANOTHER cable on the right side of the photo - this goes to my winch. I activated the winch, to help pull the new robline cable through the knuckle (compresses the spring):
    Click image for larger version  Name:	20190707_191328.jpg Views:	0 Size:	60.0 KB ID:	587804

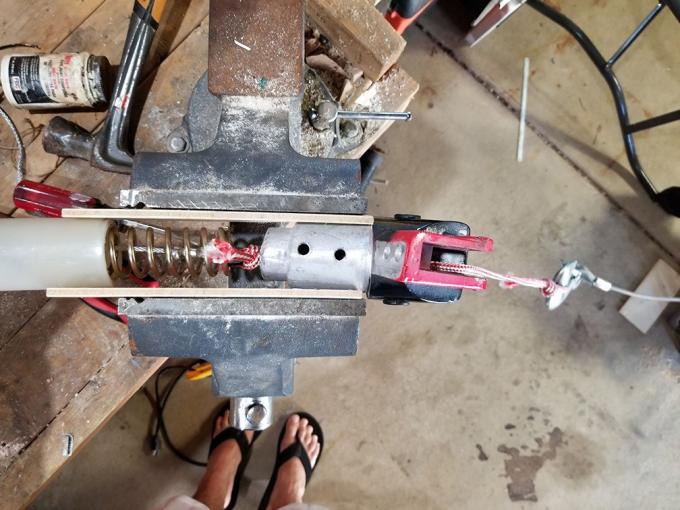

    Here is is pulled through. In this image, the spring is under a lot of tension. sorry the image is rotated:
    Click image for larger version  Name:	image_47404.jpg Views:	4 Size:	57.1 KB ID:	587803

    Once you get to this step, simply re-install the roller wheel and pin to hold the whole assembly together.

    Click image for larger version  Name:	20190707_191602.jpg Views:	0 Size:	77.6 KB ID:	587806

    From here it is a reverse install. after you get the knuckle installed on the boat, just push the cable such that it is tilted down like this. This will give you enough clearance to get the tower to fold and connect up the cable.
    Click image for larger version  Name:	20190707_195256.jpg Views:	0 Size:	95.4 KB ID:	587807

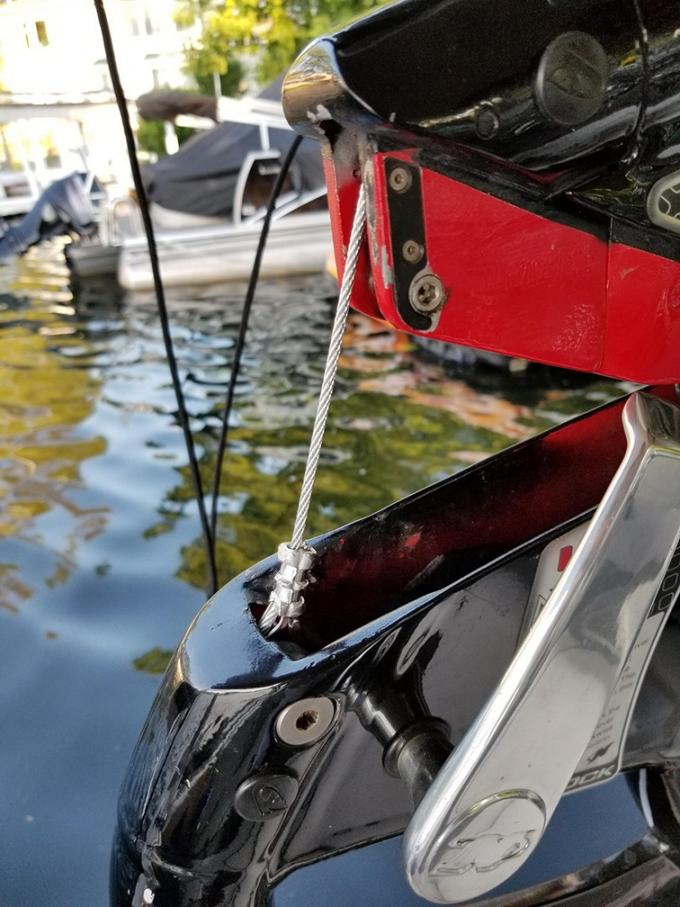

    You will notice that locking the tower takes a bit more force, but it locks securely no problem. The Ferrules make the fitment tight - so make sure you try to get the smallest ones that work. Here it is connected
    Click image for larger version  Name:	20190707_195929.jpg Views:	0 Size:	88.8 KB ID:	587808

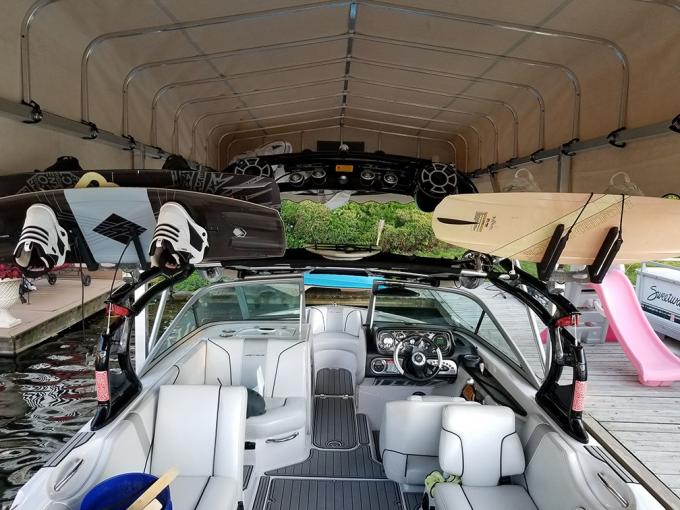

    Here is how much drop the tower has with the 18" lines. you can probably go with 19" or 20" and get a little more drop and still not have the Z5 pushing on the windshield. The 18" cable gives me all I need to get under my bridge.

    Click image for larger version  Name:	20190707_200601.jpg Views:	0 Size:	71.8 KB ID:	587809

    Click image for larger version  Name:	20190707_200851.jpg Views:	0 Size:	68.6 KB ID:	587810


    The first cable took me a long time to do, because I was figuring it all out. The second cable, from start, removal, building the cable, and re-install took me 1 hour.

    Hope this helps someone.
    Last edited by martymizah; 07-10-2019, 08:48 PM.
    -martini
  • srock
    1,000 Post Club Member
    • Oct 2008
    • 1064

    • Florida

    • 2009 Super Air 230 2005 Whaler Dauntless

    #2
    Thanks for the write up. I too will soon be "living under a bridge" and may need a couple extra inches. How much clearance did you gain? At this point, is the Z5 on the windshield the limiting factor?

    Comment

    • martymizah
      • Jan 2018
      • 112

      • Mi

      • 2009 SANTE 210

      #3
      I probably gained about 5 inches, with more to be had.

      The limitation is really the fact that I am 6'2" and I don't want the Z5 to be on my head while i drive the boat. In the second to last picture, the Z5 is on the windshield, but it is not applying any pressure, it can cantilever at the front connections and is just loosely hanging there by its own weight on the windshield.. I disconnected the gas shock on the Z5 so it rotates freely. I can actually lower the tower another few inches and the Z5 will 'level' out more

      My goal was really to get the edges of the boards aligned with the top of the tower so that the last photo will be flush across the top. I didn't quite get it there, but its close.

      I will likely make another set of cables that is an inch or two longer.
      -martini

      Comment

      • martymizah
        • Jan 2018
        • 112

        • Mi

        • 2009 SANTE 210

        #4
        So I ended up making the cables again, but extending them to 19". This basically makes the wakeboards even with top of the tower, and puts the Z5 level when the rear hinges are undone and the gas shock is removed. See picture below for the difference 1" in cable makes.... its quite a bit.
        Click image for larger version

Name:	image_47453.jpg
Views:	253
Size:	40.7 KB
ID:	588174
        -martini
